Household Energy Storage System
High voltage circuit
The new energy storage battery box includes a heat dissipation device, an air outlet duct and a gas component connected to the air outlet duct are connected to one end of the support column, and the gas components pass through the air outlet duct in turn. Ventilation and heat dissipation efficiency, reducing energy consumption.
Safe and reliable
Lithium Iron Phosphate (LFP)
Flexible investment
2.7kwh modular design2.7-13.5kwh flexible expansionMore available power
100% deep dischargeModule charging optimizationEasy installation
12kg power module50kg battery moduleQuick startP
Automatic recognition in APPPerfectly Compatible
Matching multiphase invertersHigh Voltage BMS Board

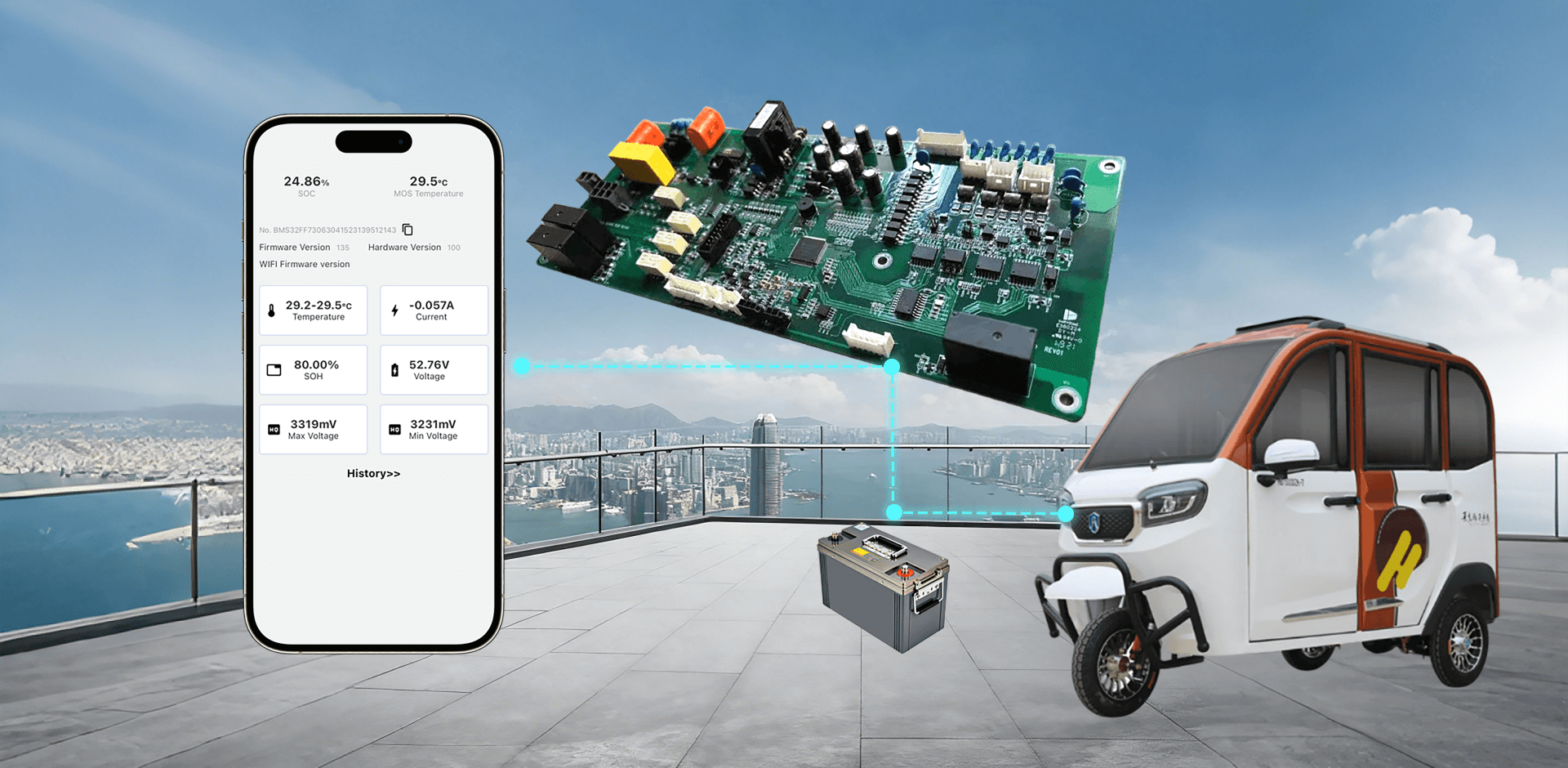

High Voltage BMS Board
BMU manages a battery pack of 32 strings, lithium iron phosphate or ternary battery, rated discharge 40A-100A (maximum continuous), charging 40A-100A (maximum continuous), with balanced management. With LED power display, with WIFI, RS485, CAN communication (default standard), BCU supports up to 5 battery packs in series, the battery cluster system does not require the third layer of hardware to manage up to 4 BCUs in parallel.
Smart Active Balance BMS
Inductive mode
Efficient, cost-effective, easy installation and productionDCDC mode
Highest efficiency, rapid energy transfer, high cost, high difficulty StandardBMS Board
- 1. BMS for Lead acid replacement
- 2. BMS for 2 wheelers&3 wheelers/AGV
- 3. BMS for high speed motorcycle
- 4. BMS for golfcart/forklift/4 wheelers
- 5. BMS for battery swapping
Aray Power Cloud Platform
- CloudPlatform
- real-time display
- Remote function cont
- Use mobile phone app, WeChat Mini Program and computer webpage to login
- Real-time monitoring of power consumption, intelligent deployment of power consumption
